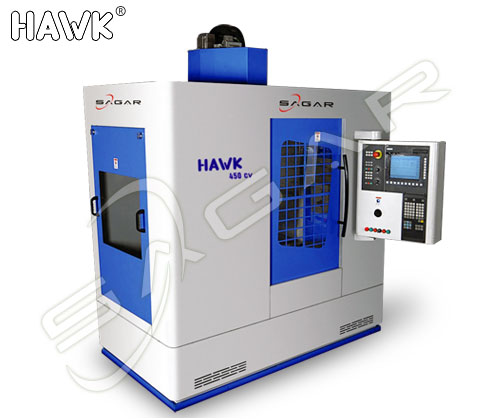

Model -HAWK CV Series

Specifications	HAWK 400 CV	HAWK 600 CV	HAWK 800 CV	HAWK 1000 CV	HAWK 1200 CV
Travel (X, Y, Z,)	420 X 350 X 350	610 X 500 X 450	760 X 500 X 450	1000X 560 X 500	1200X 600 X 560
Table	500 X 350	760 X 500	915 X 500	1200 X 560	1500 X 600
Table Load	400 Kg	600 Kg	800 Kg	1000 Kg	1200 Kg
T – Slot	3 X14 X100	4 X18 X100	4 X18 X100	4 X 100	5 X 100
SPINDLE
Spindle Power	3.7/5.5Kw	5.5/7.5Kw	7.0/9Kw	9/12Kw	11/15Kw
Spindle Taper	BT – 40	BT – 40	BT – 40	BT – 50	BT – 50
Spindle rpm Std	60 – 6000	60 – 6000	60 – 6000	60 – 6000	60 – 6000
(Optional)	8000 rpm	8000 rpm	8000 rpm	8000 rpm	8000 rpm
	10, 000 rpm	10, 000 rpm	10, 000 rpm	10, 000 rpm	10, 000 rpm
ATC	12 Tool (Armless)	12 Tool (Armless)	16 Tool (Armless)	20 Tool (Armless)	24 Tool (armLESS)
Max. Tool Dia ( All pocket)	80/125	80/125	80/125	125/160	125/160
( Alt. Pocket )	200	250	250	300	300
Max. Tool Length
Tool Weight	6 Kg	8 Kg	8 Kg	10 Kg	12 Kg
Tool Selection	Bi Direction	Bi Direction	Bi Direction	Bi Direction	Bi Direction
Air Required	5 bar	5 bar	5 bar	5 bar	5 bar
FEED
Feed rate	1 – 5000	1 – 5000	1 – 5000	1 – 5000	1 – 5000
Rapid rate (Std.)	20	20	20	20	20
(Opp.)	32	32	32	32	32
ACCURACY
Positioning (as per JIS)	±0. 005	± 0. 006	± 0. 010	± 0. 010	± 0. 012
Repeatability (as per JIS)	± 0. 003	± 0. 004	± 0. 005	± 0. 005	± 0. 006
Hydraulic	-	-	-	50 bar	50 bar
Weight of Machine	3000 Kg	4500 Kg	5500 Kg	7000 Kg	10,000 Kg
CNC System (Siemens)	802 D SL	802 D SL	802 D SL	802 D SL	802 D SL
(Optional) (Siemens)	810 D SL	810 D SL	810 D SL	810 D SL	810 D SL
(Siemens)	840 D SL	840 D SL	840 D SL	840 D SL	840 D SL
(Fanuc)	Oi	Oi	Oi	Oi	Oi
